The most advanced 4WD business solution ever built
WATCH VIDEO
Back35°
GRADEABILITY
UP TO 1 M
HEIGHT OF OBSTACLE
600 MM
GROUND CLEARANCE
30°
TILT
Dense forests, fallen trees, shaky grounds, gravel, peat, moor, marsh, dunes, swamps, baulders, scree, snow, ice.
Floats constantly at any depth: pounds, lakes, rivers, shores, coasts and frozen waters.
The only wheeled vehicle to climb from waters onto the ice. Able on up to 5 582 m over sea level and overcome obstacles up to 1 m in height.
-40°C +45°C operable in the smoke, fog, rain, blizzard, hurricane, heat, storms.
UP TO 75%
SAVES ON EVERY TON
1,200 KG
LOADING CAPACITY
UP TO 65 H
OF AUTONOMY
$7/H
OWNERSHIP COSTS
Universal logistics solutions – substitutes an ATV, a snowmobile, a boat, a hovercraft, and manpower.
Is sure to transport people and cargo to their destinations no matter the weather and terrain.
Low expenses per 1 ton of cargo delivery – saves up to 75% when compared to a helicopter
Low running costs – $7 per hour
Low fuel consumption – 5–8 L (1.3–2.1 gallons) of diesel per hour.
Total fuel capacity increases to 327 L (86.3 gal) due to additional fuel tanks integrated in each wheel disk.
Up to 65 hours of autonomous work and 19 hours of non-stop running.
Total loading capacity – 1,200 kg (increases to 2,100 kg due to additional universal cargo trailer).
Passenger capacity – up to 9 people (incl. a driver).
Towing capacity – 2,350 kg.
Overall internal volume – 7.8 m3.
SHERP UTV is reliable and maintainance-friendly, so it can be repaired at any place, no matter the outside environment.
SHERP N is fully covered by the official manufacturer’s warranty that is 2 years OR 1000 m/h (whichever comes first). 24/7 customers’ support is available all around the world.
1.8 L
DIESEL ENGINE
6-SPEED
MANUAL GEARBOX
55 HP
POWER
190 N·m
TORQUE
Unique ultra-low pressure tires are less liable to damage due to their elasticity. The tire puncture can be easily repaired right in the field.
The four wheels are interconnected and make up a single system that allows inflating the tires with the exhaust gases by pressing a button.
The patented design of the wheel and its tread provide a high level of adhesion to the ground and allow propulsion on the water.
Body components are made of aluminum and galvanized steel.
Load frame protects internal systems and components from the harsh environment.
SHERP doesn’t damage the soil while driving due to the lowest ground pressure indexes among amphibious vehicles: 0.07–0.15 kg/cm2 (0.9–2.1 lb/in2).
An eco-friendly engine that complies with Stage V/Tier-4-final emission standards and provides the power of 55hp/41kW.
A low center of gravity decreases the rollover risk.
The body design includes integrated ROPS made of steel, which makes the UVT much safer.
The driver’s and passengers’ seats are equipped with adjustable two-, three-, and four-point seatbelts.
The cabin has a large windshield and side windows that provide excellent visibility and allow assessing and reacting to the most extreme situations in a split second.
A unique patented solution – compressor-less tires inflation system – ensures flawless operation no matter any external conditions.
The suspension does not include any springs, shock absorbers, struts and other conventional elements, resulting in higher reliability and lower repair costs.
4,002 MM
LENGTH
2,520 MM
WIDTH
2,852 MM
HEIGHT
2,118 MM
WHEELBASE
Corrosion resistance due to galvanized steel body
Lighter vehicle and low center of gravity
At the front and back door
Allows the driver to control the environment behind

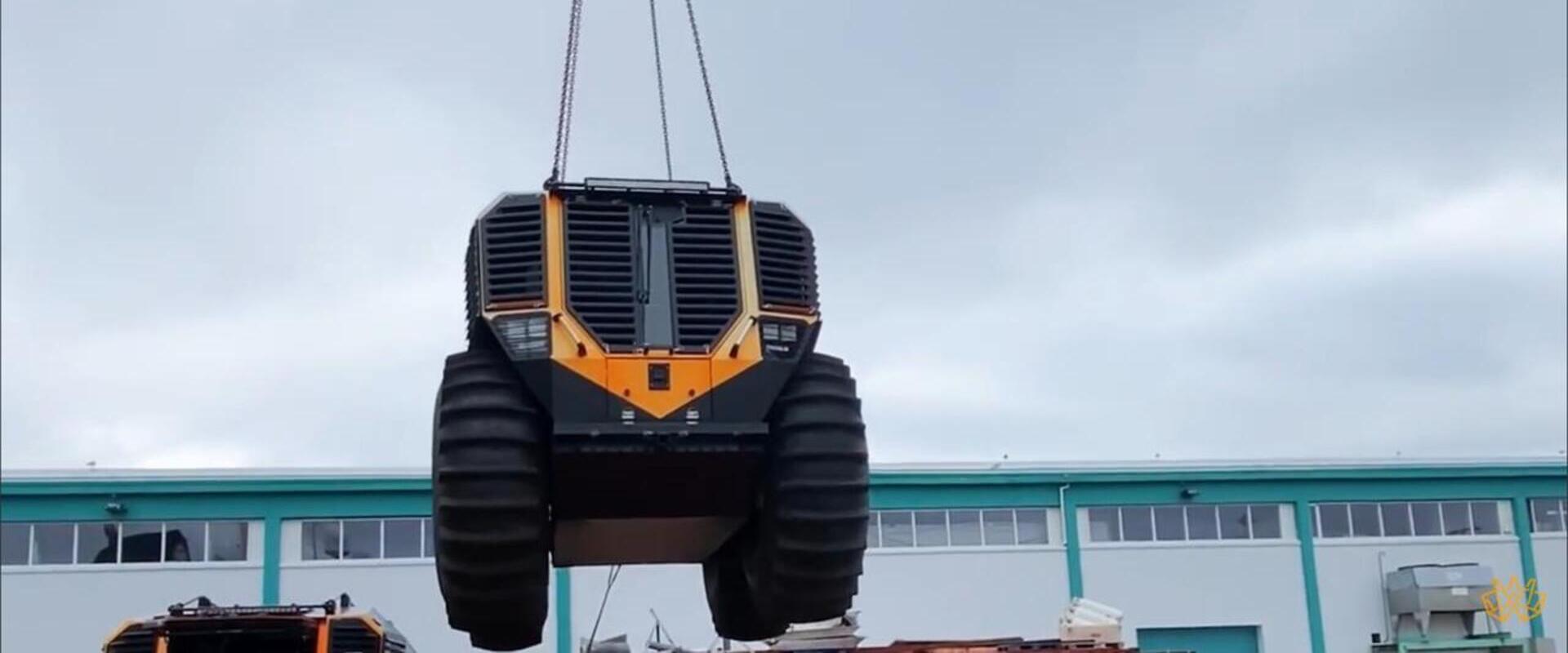

Durable loops for safe transportation of the all-terrain vehicle by crane or helicopter

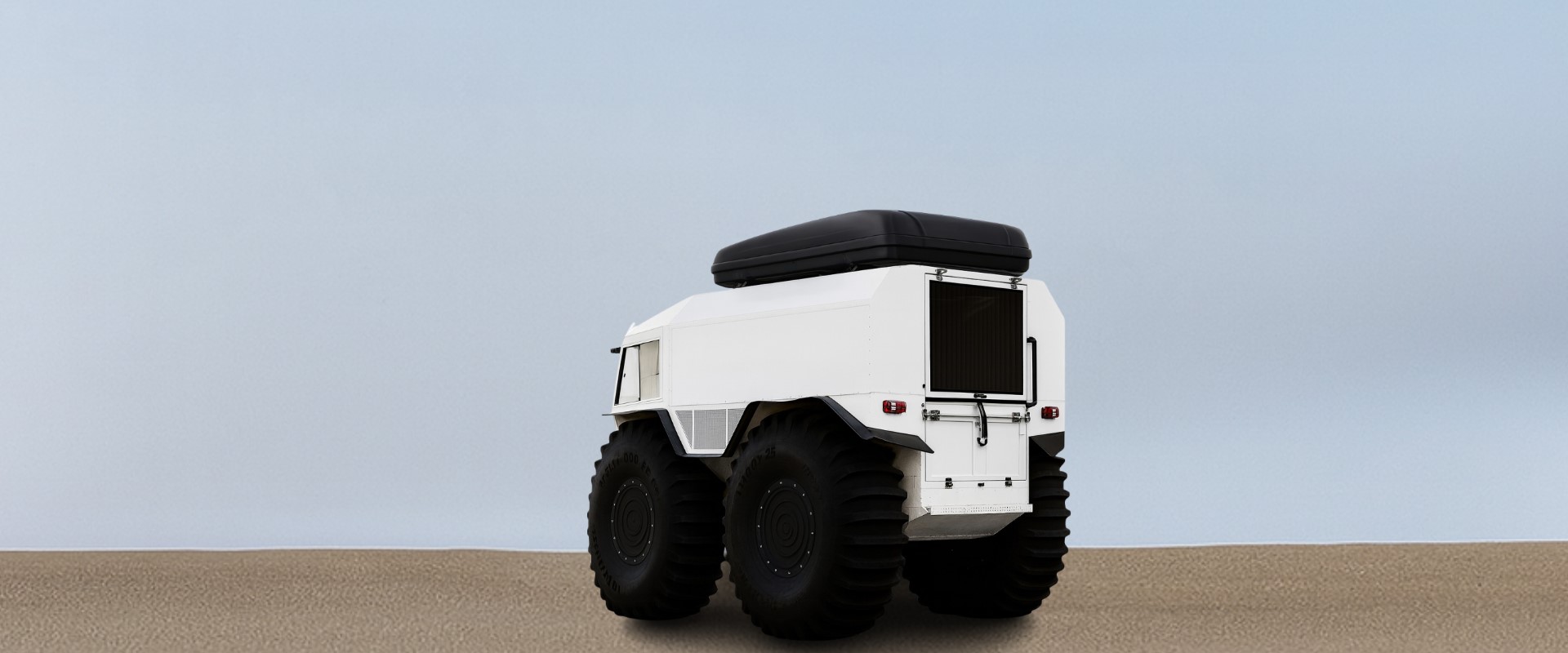

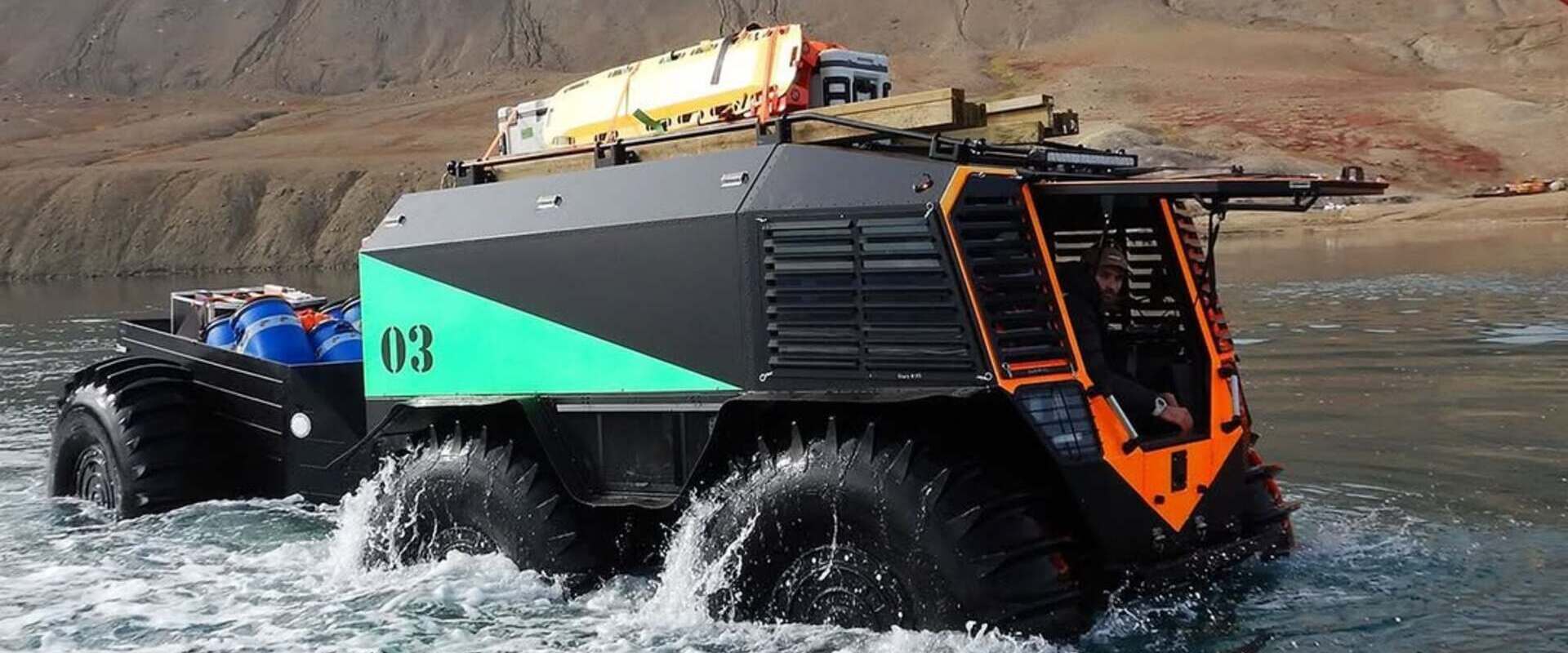

Additional storage space for items and bulky cargo on the roof.

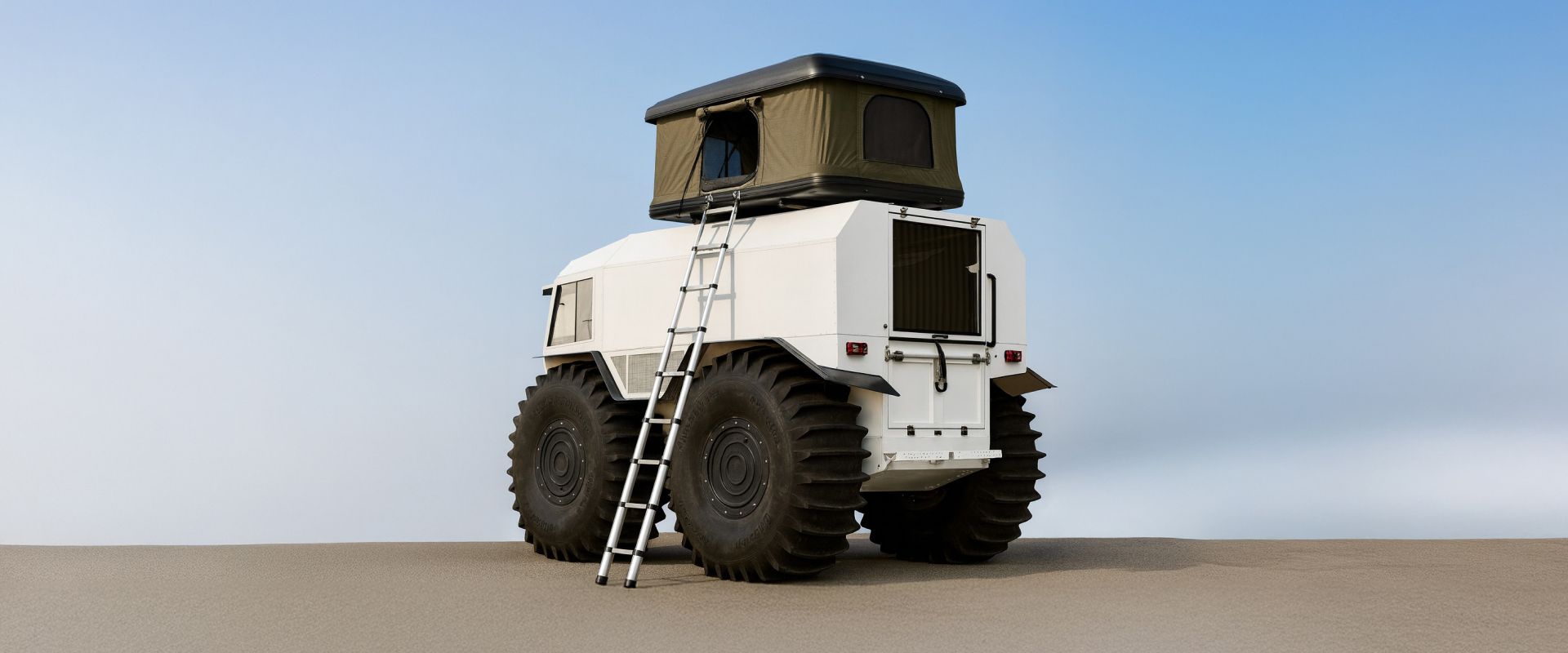

Compact rooftop tent with a ladder for comfortable sleeping while preserving interior space.
Compact rooftop tent with a ladder for comfortable sleeping while preserving interior space.

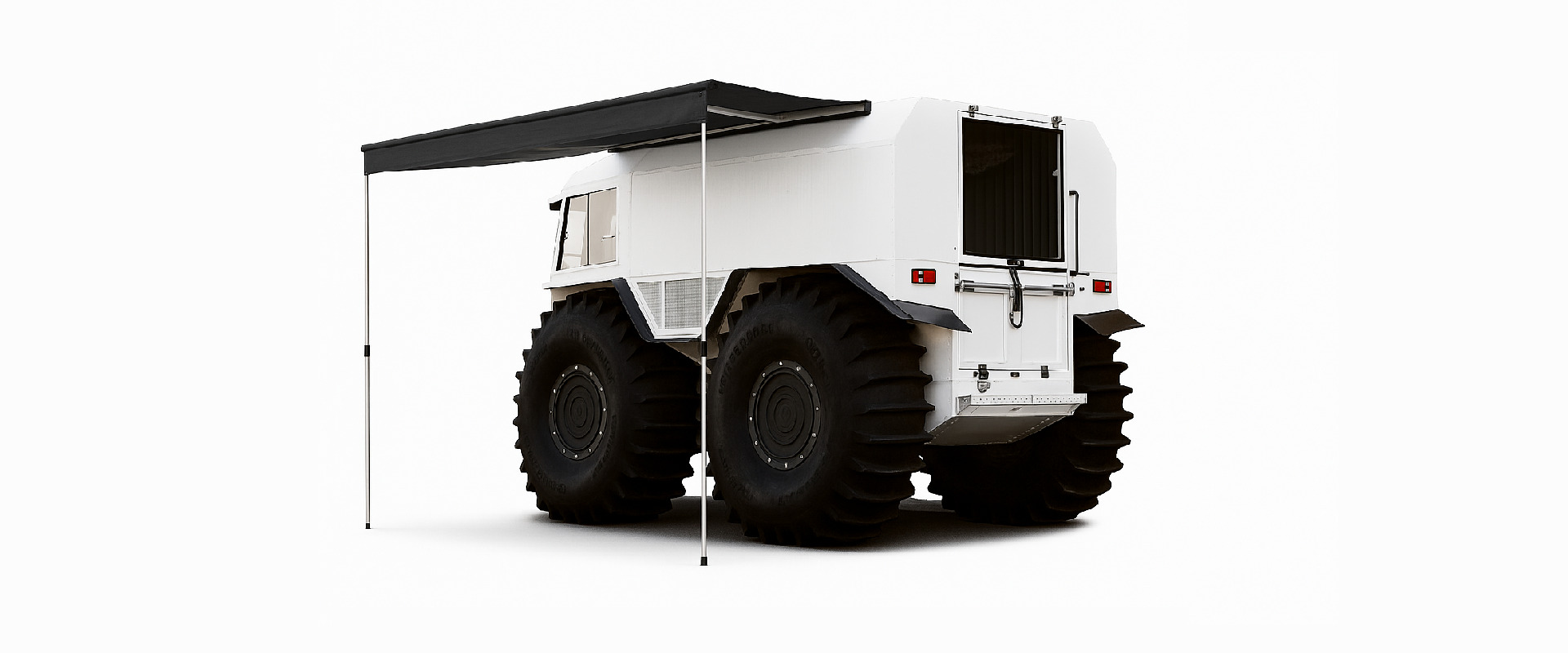

Retractable canopy for protection against sun and rain.
HARD TOP
2 SIDE WINDOWS
4 SIDE WINDOWS
2 M³
CABIN
5.8 M³
REAR COMPARTMENT
7.8 M³
OVERALL VOLUME
UP TO 9
PEOPLE
Allows using SHERP both as a crew and cargo carrier
Allows using SHERP both as a crew and cargo carrier
Able to carry up to 9 people, including a driver
Ensure comfortable ride even on harsh terrains
Ensure comfortable ride even on harsh terrains
Ensure passengers’ security
Spacious cabin compartment ensures comfortable and easy driving
Optimum number of switches ensures overall control of the UTV’s systems
A comfortable convertible space for rest and work.
NO SEATS / CARGO
2 BACK SEATS
4 BACK SEATS
7 BACK SEATS
600 KG
Dry weight
900 KG
loading capacity
3400 L
internal volume
630 KG
Dry weight
900 KG
loading capacity
5800 L
internal volume
60 KM/H
max. speed
8000 KG
max. payload
1100 L
fuel autonomy
Able to reach destinations overcoming any barriers even faster with SHERP UTV and SHERP Shuttle as a solution.
The boat is used to transfer up to 2 SHERPs Pro or SHERPs N on water.
2400 KG +
loading capacity
4002 MM +
length
2520 MM +
width
A solution for transporting SHERP N 1200 by the public roads.
